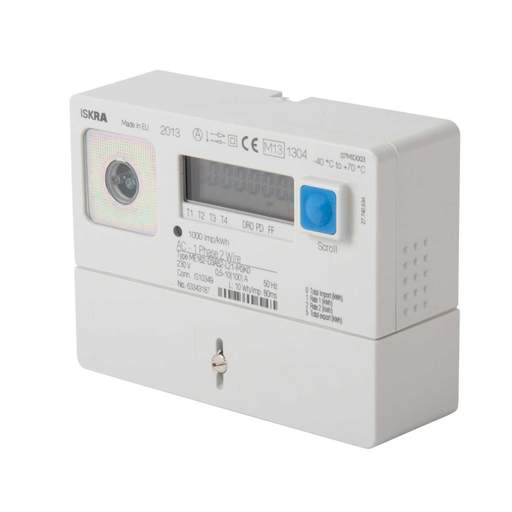

MCG 100A 1 Phase Dual Rate kWh Meter with LCD Display Direct Connection

Part Code: ISK/ME162

Stock Code: 0433-1965

MCG 100A 1 Phase Dual Rate kWh Meter with LCD Display Direct Connection

Part Code: ISK/ME162

Stock Code: 0433-1965

Delivery

12 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Single phase meter for residential and small commercial users, for revenue measuring of active power in two wire systems
  • Energy measurement: standard (as a mechanical meter), double direction, always positive (absolute)
  • Communication optical port for semi-automatic meter reading
  • Real time internal clock generates a tariff program, season changeover, transition to day light saving period and vice-versa
  • LCD display with automatic and manual scroll modes
  • LED indicators to show meter status
  • No need for recalibration in meters life-time
  • Polycarbonate, self extinguishable enclosure
  • IP53 protection

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Accuracy
Class 1 or 2
Colour
Light Grey
Depth
42.5mm
Dimensions
(H)97 mm x (W)130 mm x (D)42.5 mm
Display Type
LCD
Frequency
50/60 Hz
Guarantee
1 Year
Height
97mm
Integrated Gsm Module
No
Material
Polycarbonate
Maximum Current
100A
Number of Phases
1
Packaging Types
Each
Product Range
Electricity Meters
Relevant Voltage
230V
Standards
IEC 62052-11, IEC 62053-21 (IEC 61036), IEC 62056-21, BS 5685, IEC 1000-4-4, IEC 61107
Tamper Detection
No
Type
Direct Connected
Unspsc V18
39121106
Weight
0.396kg
Width
130mm
