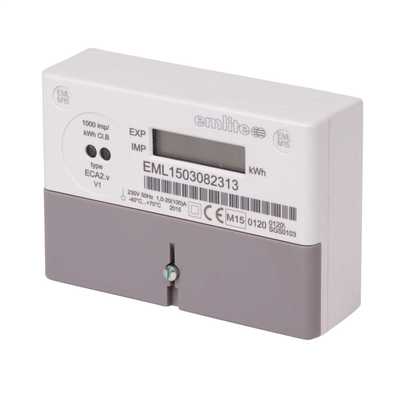

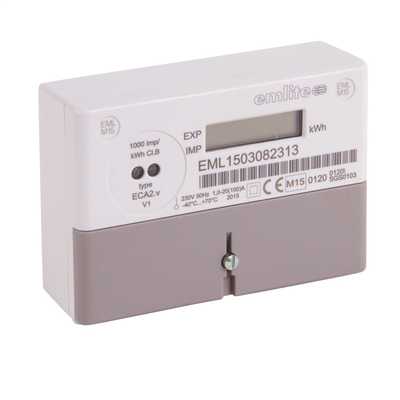

MCG 1 Phase 100A MID Approved Meter
- Part Code: M1PHMIDMETER
- Stock Code: 2027-1052
- Provides a compact solution for many metering applications
- Fully MID approved
- Measures import and export active energy (kWh)
- Highly accurate meter may be used for utility billing or micro-generation metering
- Large easy to read LCD display
- Display features 8 x 3.5mm characters and can be configured to auto cycle any of the available registers or remain static with only a single register viewable
- Optical port for configuration or meter reading
- Highly reliable and capable of withstanding high voltage events and overcurrent without failure
- Resistant to tamper with reverse energy fraud detection and sealing for life

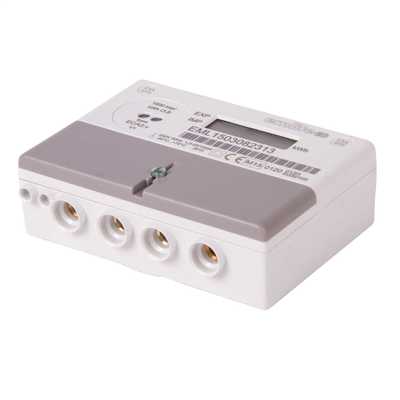

- High quality solid brass cable terminals
Specification
| Accuracy | Class B |
| Colour | Light Grey |
| Depth | 40mm |
| Dimensions | (H)91 mm x (W)125 mm x (D)40 mm |
| Display Type | LCD |
| Finish | Smooth |
| Frequency | 50/60 Hz |
| Guarantee | 1 Year |
| Height | 91mm |
| Integrated Gsm Module | No |
| Material | Polycarbonate |
| Maximum Current | 100A |
| Number of Phases | 1 |
| Packaging Types | Each |
| Previously Known As | M1PHMI0METER |
| Product Range | Electricity Meters |
| Relevant Voltage | 230V |
| Standards | IEC 629056-21, EN 50470 1-3, BS EN 60529, BS 7856 |
| Tamper Detection | Yes |
| Type | Direct Connected |
| Unspsc | 41113685 |
| Weight | 0.275kg |
| Width | 125mm |
Downloads
-
- Free delivery on orders over £50 £5.95 Delivery on orders under £50
-
Delivery
178
in stock for next day delivery
Collection
Check stock at a store
Customers also bought

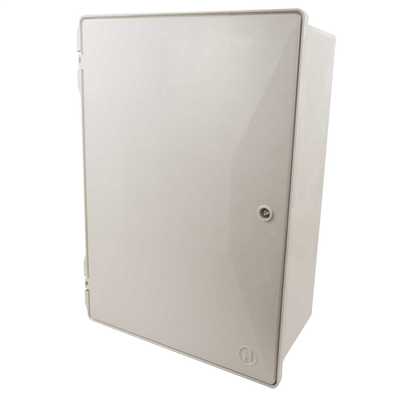

MCG 560mm x 400mm x 215mm Surface Mounted Electric Meter Box White
