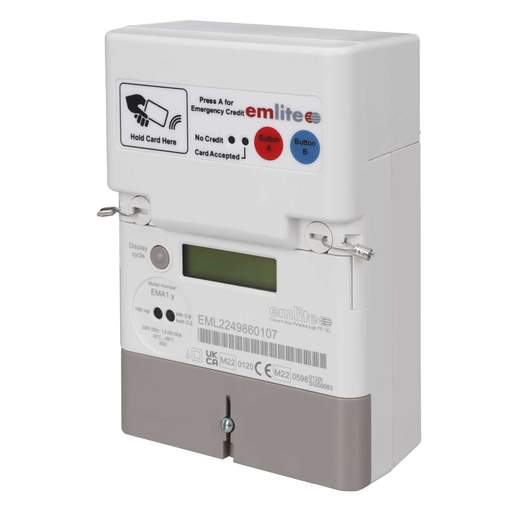

MCG 100A Single Phase Direct Connect Contactless Card Meter with an LCD Display
Part Code: RFIDMETER
Stock Code: 1895-8525
MCG 100A Single Phase Direct Connect Contactless Card Meter with an LCD Display
Part Code: RFIDMETER
Stock Code: 1895-8525
Delivery
5 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Ideal for caravan parks, marinas and rental properties
- MID certified prepayment meter
- Contactless technology
- Using RFID technology [radio-frequency identification], the credit from the prepayment cards are transferred without the requirement to insert the card
- Emergency credit function
- LED indicators to show status of meter, light flashes 1000 times for every 1kWh of energy use
- LCD display shows a variety of information including the amount of credit remaining on the meter
- Friendly non-disconnect times
- IP52 rated
- Contactless prepayment cards available [sold separately]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Accuracy
- Class B and 2
- Colour
- Light Grey
- Depth
- 70mm
- Dimensions
- (H)180 mm x (W)126 mm x (D)70 mm
- Display Type
- LCD
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 180mm
- Integrated Gsm Module
- No
- Material
- Polycarbonate
- Maximum Current
- 100A
- Number of Phases
- 1
- Packaging Types
- Each
- Product Range
- Electricity Meters
- Relevant Voltage
- 230V
- Standards
- EN 50470 1-3, IEC 62053-23, BS EN 60529
- Tamper Detection
- Yes
- Type
- Direct Connected
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Weight
- 1.56kg
- Width
- 126mm
