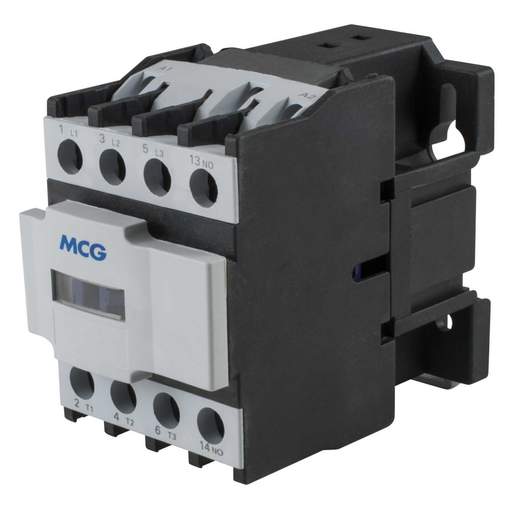

MCG 11kW Contactor 3 NO Contacts 415V Coil 1NO Auxiliary
Part Code: DL25-30-10 415V
Stock Code: 0462-8653
MCG 11kW Contactor 3 NO Contacts 415V Coil 1NO Auxiliary
Part Code: DL25-30-10 415V
Stock Code: 0462-8653
Features
- Simple and robust construction
- High mechanical and electrical life
- Coil fitted as standard
- For DIN rail or panel mounting
- Cage type cable terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 415V AC
- Colour
- Black/Grey
- Compliance
- UKCA, CE
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 40A
- Current Rating Ac3
- 25A
- Depth
- 93mm
- Dimensions
- (H)80 mm x (W)56 mm x (D)93 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 80mm
- Hp Rating
- 15metric hp
- Material
- Metal/Plastic
- Mounting
- DIN Rail / Screw Mounting
- Number of Poles
- 3 Pole
- Packaging Types
- Box
- Standards
- IEC 60947-4-1
- Suitable For
- Heating, Motor and Lighting Loads
- Type
- DL25
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 660V
- Weight
- 0.44000kg
- Width
- 56mm
- kW Rating
- 11kW
