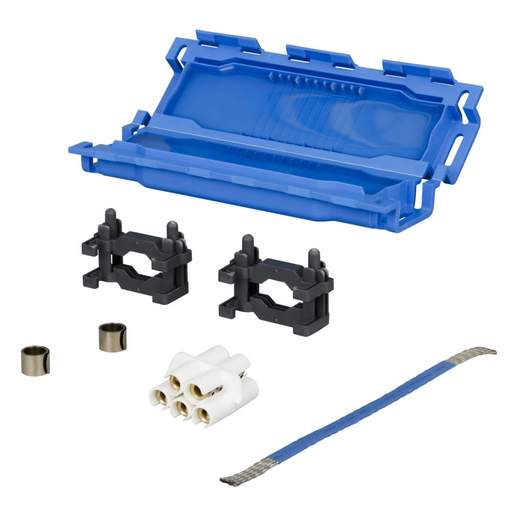

Wiska Shark 525 Gel Insulated Joint for SWA Cable
Part Code: SH525W
Stock Code: 1303-6435
Wiska Shark 525 Gel Insulated Joint for SWA Cable
Part Code: SH525W
Stock Code: 1303-6435
Features
- smart SHARK Pre-filled gel insulated straight joint
- Re-enterable
- No mixing or pouring
- Immediate operation
- Excellent electrical insulation, good mechanical strenght, no expiry date
- No expiry date
- IPX8 rated joint
- Voltage 0,6 kV - 1 kV
- Extremely efficient to use in both domestic and industrial applications
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Size
- 16mm²
- Cable Size Range
- 6 - 16mm²
- Current Rating
- 135A
- Depth
- 43mm
- Dimensions
- (L)240 mm x (W)75 mm x (D)43 mm
- Guarantee
- 1 Year
- IP Rating
- IPX8
- Length
- 240mm
- Material
- Polyamide with Silicone Filling
- Number of Terminals
- 5
- Operating Temperature Range
- -20 - 90°C
- Packaging Types
- Each
- Product Range
- smart SHARK
- Standards
- BS EN 50393
- Suitable For
- Steel Wired Armoured (SWA) or Unarmoured PVC, XLPE, EPR cables
- Supplied With
- Five Core Terminal Block, Allen Key, Armour Bond Kit with Constant Force Roll Springs and Earth Braid, Cable Retention Clamps
- Unspsc V18
- 39121452
- Unspsc V24
- 39121452
- Voltage Range
- 0.6kV - 1 kV
- Weight
- 0.82000kg
- Width
- 75mm
