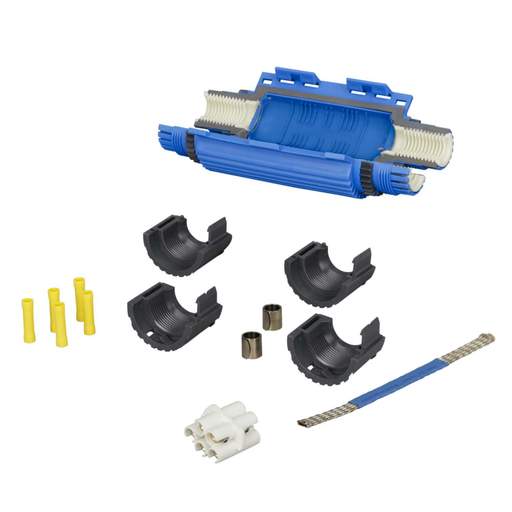

Wiska Shark Series 68 6802-A Gel Insulated Joint
Part Code: SH6802AW
Stock Code: 2229-6283
Wiska Shark Series 68 6802-A Gel Insulated Joint
Part Code: SH6802AW
Stock Code: 2229-6283
Features
- Pre-filled gel insulated joint
- Ready to use
- Re-enterable
- 100% watertight and dust-tight
- No mixing or pouring
- Immediate operation
- Excellent electrical insulation
- Good mechanical strength
- No expiry date
- Suitable for upto 5C 2.5 - 10mm cables
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Size
- 10mm²
- Cable Size Range
- 2.5 - 10mm²
- Current Rating
- 80A
- Depth
- 48mm
- Dimensions
- (L)235 mm x (W)68 mm x (D)48 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Length
- 235mm
- Material
- Polyamide with Silicone Filling
- Operating Temperature Range
- -20 - 90°C
- Packaging Types
- Each
- Product Range
- Shark Sixeight
- Standards
- BS EN 50393, EN60529
- Suitable For
- SWA cables
- Supplied With
- Modular Bolts and Gaskets, Cable Rentention Clamp, Spring Coil and Earthing Braid
- Unspsc V18
- 39121452
- Unspsc V24
- 39121452
- Voltage Range
- 0.6kV - 1 kV
- Weight
- 0.57kg
- Width
- 68mm
