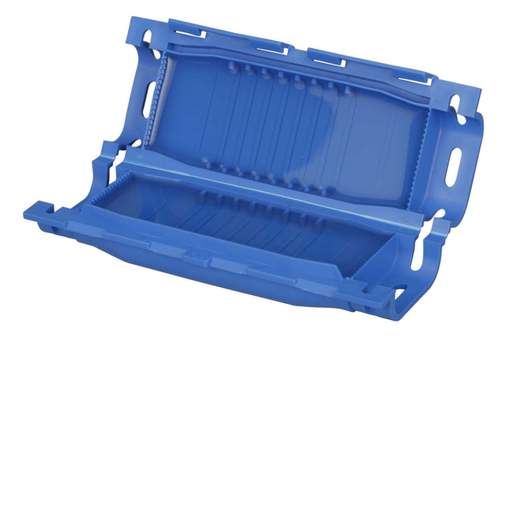

Wiska Shark Gel Insulated Joint with 3 Pole 30A Terminal Block IPX8
Part Code: SH0316W
Stock Code: 1655-6875
Wiska Shark Gel Insulated Joint with 3 Pole 30A Terminal Block IPX8
Part Code: SH0316W
Stock Code: 1655-6875
Features
- smart SHARK Pre-filled gel insulated straight joint
- Re-enterable
- No mixing or pouring
- Immediate operation
- Excellent electrical insulation, good mechanical strenght, no expiry date
- No expiry date
- IPX8 rated joint
- Voltage 0,6 kV - 1 kV
- Extremely efficient to use in both domestic and industrial applications
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Size
- 6mm²
- Cable Size Range
- 1.5 - 6mm²
- Current Rating
- 30A
- Depth
- 40mm
- Dimensions
- (L)180 mm x (W)69 mm x (D)40 mm
- Guarantee
- 1 Year
- IP Rating
- IPX8
- Length
- 180mm
- Material
- Polyamide with Silicone Filling
- Number of Terminals
- 3
- Operating Temperature Range
- -20 - 90°C
- Packaging Types
- Each
- Product Range
- smart SHARK
- Standards
- BS EN 50393
- Suitable For
- Joining Cables up to a Rating of 30A
- Supplied With
- 3 Pole Terminal Block
- Unspsc V18
- 39121452
- Unspsc V24
- 39121452
- Voltage Range
- 0.6kV - 1 kV
- Weight
- 0.34000kg
- Width
- 69mm
