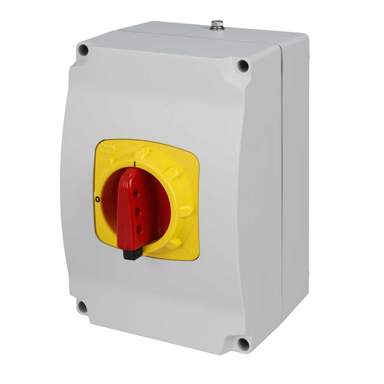

Craig & Derricott 32A 4 Pole Rotary Isolator Switch IP66
Part Code: SDP323N
Stock Code: 1314-9232
Craig & Derricott 32A 4 Pole Rotary Isolator Switch IP66
Part Code: SDP323N
Stock Code: 1314-9232
Features
- Padlockable handle which allow for the insertion of up to three padlocks
- Interlocked in the "ON" position preventing the lid from being removed
- 2 x M20 knock-outs top and bottom
- IP66 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x M20 Knock-outs Top and Bottom
- Colour
- Grey
- Compliance
- UKCA, CE
- Current Rating
- 32A
- Depth
- 95mm
- Dimensions
- (H)135 mm x (W)100 mm x (D)95 mm
- Guarantee
- 1 Year
- Height
- 135mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- PC / ABS
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- IEC/BS EN 60947-3
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 400V
- Weight
- 0.67700kg
- Width
- 100mm
