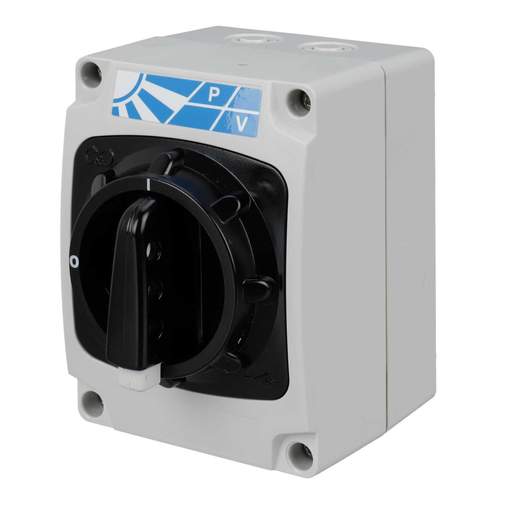

Craig & Derricott 16A 2 Pole 1000V DC Surface Mounting Isolator IP66
Part Code: PVP162
Stock Code: 2369-3452
Craig & Derricott 16A 2 Pole 1000V DC Surface Mounting Isolator IP66
Part Code: PVP162
Stock Code: 2369-3452
Features
- Specifically designed for photovoltaic systems
- Lockable rotary handle
- Insulated thermoplastic enclosure
- Terminal tightening torque: 1.2 Nm
- 2 x M20 knockouts on top, bottom and back
- Mechanical life: 15,000
- Max rated current 16A@1000VDC [acc to DC21B]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey/Black
- Current Rating
- 16A
- Depth
- 95mm
- Dimensions
- (H)135 mm x (W)100 mm x (D)95 mm
- Guarantee
- 1 Year
- Height
- 135mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- ABS Plastic
- Mounting
- Surface
- Number of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- PV Enclosed Switchgear Range
- Standards
- IEC / BS EN 60947-3
- Type
- DC Isolator
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 1000V
- Weight
- 0.58kg
- Width
- 100mm
