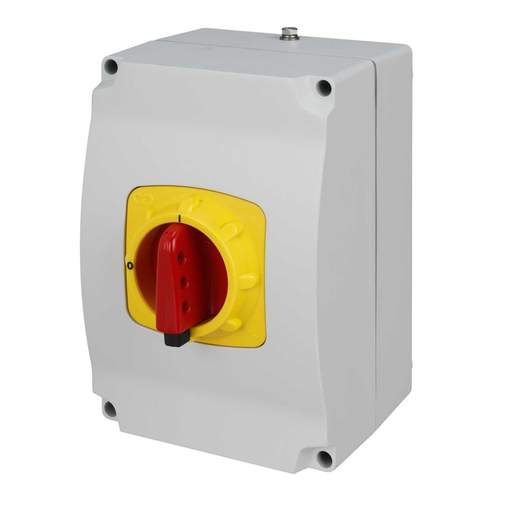

Craig & Derricott 40A 4 Pole Die-Cast Aluminium Rotary Isolator Switch IP66
Part Code: SDDG403N
Stock Code: 2173-1773
Craig & Derricott 40A 4 Pole Die-Cast Aluminium Rotary Isolator Switch IP66
Part Code: SDDG403N
Stock Code: 2173-1773
Features
- Can be placed in environments where resistance to impacts, moisture and dust/dirt are a concern
- Padlockable handle which allow for the insertion of up to three padlocks
- Interlocked in the "ON" position preventing the lid from being removed
- 2 x M25 and 1 x M20 knock-outs on the bottom face
- IP66 Rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x M25 + 1 x M20 on Bottom Face
- Colour
- Grey
- Compliance
- UKCA, CE
- Current Rating
- 40A
- Depth
- 120mm
- Dimensions
- (H)220 mm x (W)100 mm x (D)120 mm
- Finish
- Light Grey [RAL 7035]
- Guarantee
- 1 Year
- Height
- 220mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Die-Cast Aluminium
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Previously Known As
- SDDG403M
- Standards
- IEC/BS EN 60947-3
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 400V
- Weight
- 2.24000kg
- Width
- 100mm
