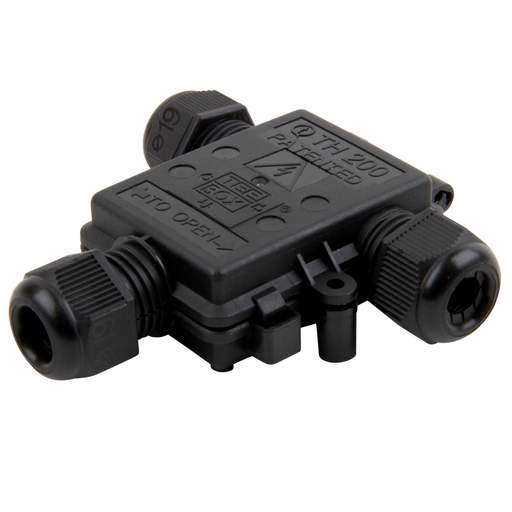

F4P 24A Tee Junction Box IP67
Part Code: THK200/3B
Stock Code: 0070-2688
F4P 24A Tee Junction Box IP67
Part Code: THK200/3B
Stock Code: 0070-2688
Delivery
6 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Accomodates cable diameters from 4mm to 9.5mm
- Temperature range of -40°C to +125°C
- Hinged lid with a tamper resistant snap-shut action
- 3 pole terminal block
- Compete with seals and locking caps
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Cable Size Range
- 4 - 9.5mm²
- Colour
- Black
- Compliance
- CE, RoHS, ENEC, Nemko
- Current Rating
- 24A
- Depth
- 20mm
- Dimensions
- (L)82 mm x (W)70 mm x (D)20 mm
- Guarantee
- 1 Year
- IP Rating
- IP67
- Length
- 82mm
- Material
- PA66-SEBS-TPE
- Maximum Cable Diameter
- 9.5mm
- Maximum Operating Temperature
- 125°C
- Minimum Diameter
- 4mm
- Minimum Operating Temperature
- -40°C
- Number of Poles
- 3 Pole
- Number of Terminals
- 3
- Packaging Types
- Bag
- Product Range
- TeeBox
- Supplied With
- 3 Pole Terminal Block, Seals and Locking Caps
- Terminal Type
- Screw
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Voltage Rating
- 450V
- Weight
- 0.05kg
- Width
- 70mm
