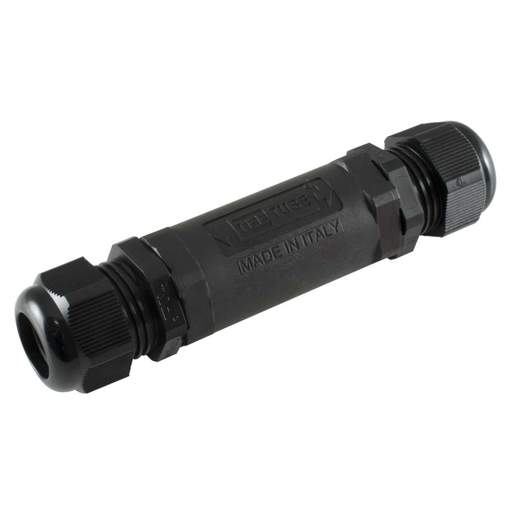

F4P 32A 5 Pole In-Line Cable Connector IP68 Black
Part Code: THT500/BLK
Stock Code: 0101-8078
F4P 32A 5 Pole In-Line Cable Connector IP68 Black
Part Code: THT500/BLK
Stock Code: 0101-8078
Features
- Tough, robust construction
- Weatherproof IP68 rated to 5 Bar
- Temperature range of -40 to 125°C
- Compete with seals, locking caps and 5 pole terminal block
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Cable Size Range
- 5 - 14mm²
- Colour
- Black
- Compliance
- UKCA, CE, RoHS, ENEC
- Current Rating
- 32A
- Diameter
- 35mm
- Dimensions
- (L)135 mm x (Dia)35 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Length
- 135mm
- Material
- PA66/TPE
- Maximum Cable Diameter
- 14mm
- Maximum Operating Temperature
- 125°C
- Minimum Diameter
- 5mm
- Minimum Operating Temperature
- -40°C
- Number of Poles
- 5 Pole
- Number of Terminals
- 5
- Packaging Types
- Each
- Product Range
- TeeTube
- Stripping Length
- Outer: 25mm / Inner: 6 - 8mm
- Suitable For
- Round cable only / Indoors or Outdoors
- Terminal Capacity Earth
- 4mm²
- Terminal Capacity Live Neutral
- 4mm²
- Terminal Type
- Screw
- Type
- In Line
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Voltage Rating
- 450V
- Weight
- 0.07600kg
