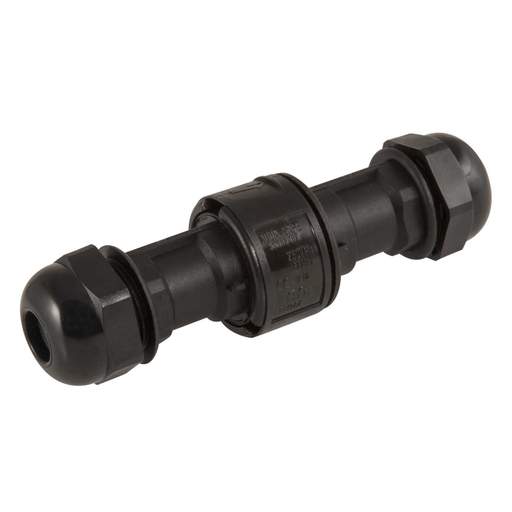

Adaptaflex Aquasafe 16A 8 - 13mm In-Line Cable Connector IP68
Part Code: 185-9100
Stock Code: 0189-4363
Adaptaflex Aquasafe 16A 8 - 13mm In-Line Cable Connector IP68
Part Code: 185-9100
Stock Code: 0189-4363
Delivery
6 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Ideal for use in domestic and commercial applications, such as outside lighting, heating and water pumps
- Tested to IP68, 2 bar for 30 minutes
- Cost effective
- Quick connect and release with a snap lock collar
- More reliable than screw thread connectors
- Active latch mechanism for quicker wiring
- Suitable for cables with a diameter between 8 - 13mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Adaptaflex
- Cable Size Range
- 8 - 13mm²
- Colour
- Black
- Compliance
- CE
- Current Rating
- 16A
- Diameter
- 37mm
- Dimensions
- (L)135 mm x (Dia)37 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Length
- 135mm
- Material
- Polycarbonate
- Number of Poles
- 3 Pole
- Number of Terminals
- 3
- Packaging Types
- Bag
- Product Range
- Aquasafe
- Standards
- IEC 61984
- Terminal Capacity Earth
- 4 mm²
- Terminal Capacity Live Neutral
- 4 mm²
- Type
- In Line
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Voltage Rating
- 250V
- Weight
- 0.071kg
