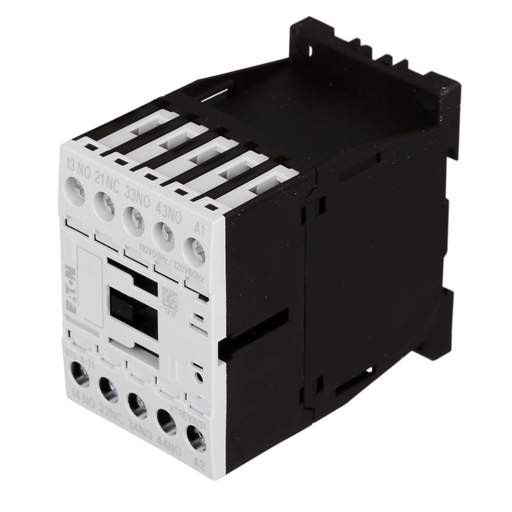

Moeller DILA-31 110V AC Contactor Relay 3 NO + 1 NC Contacts
Part Code: 276361
Stock Code: 1590-9406
Moeller DILA-31 110V AC Contactor Relay 3 NO + 1 NC Contacts
Part Code: 276361
Stock Code: 1590-9406
Features
- Basic devices with positive operation contacts
- DIN Rail or screw mounted
- EN60947-4-1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Coil Voltage
- 110V AC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO 1 NC
- Current Rating
- 4A
- Depth
- 75mm
- Dimensions
- (H)68 mm x (W)45 mm x (D)75 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 68mm
- IP Rating
- IP20
- Mounting
- DIN Rail / Plate
- Operating Temperature Range
- -25 - 60°C
- Packaging Types
- Each
- Product Range
- DILA Relays
- Standards
- IEC EN 60947, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 110V
- Weight
- 1.50000kg
- Width
- 45mm
