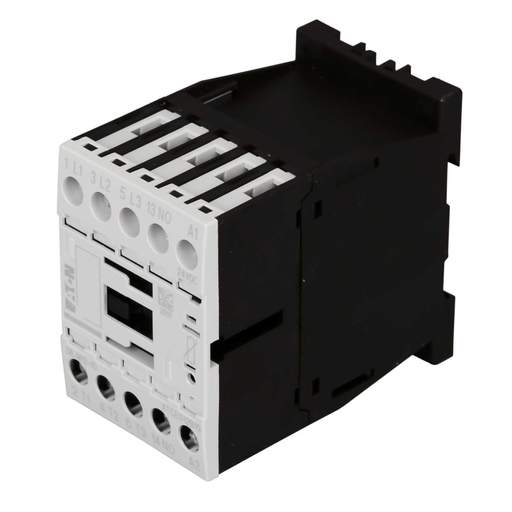

Moeller DILM12-10 5.5kW Contactor 3 NO Contacts 24V DC Coil

Part Code: 276845

Stock Code: 1590-9718

Moeller DILM12-10 5.5kW Contactor 3 NO Contacts 24V DC Coil

Part Code: 276845

Stock Code: 1590-9718

Delivery

28 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Box terminal with double coupling
  • Screw connections
  • DIN rail or panel mounted
  • EN 60947-4-1

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Auxiliary Contact
1 NO
Coil Voltage
24V DC
Colour
Black/Grey
Compliance
CE
Contact Configuration
3 NO
Current Rating Ac1
22A
Current Rating Ac3
12A
Depth
75mm
Dimensions
(H)68 mm x (W)45 mm x (D)75 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
68mm
IP Rating
IP20
Mounting
DIN Rail / Plate
Number of Poles
3 Pole
Operating Temperature Range
-25 - 60°C
Packaging Types
Each
Product Range
DILM
Standards
IEC/EN 60947-4-1; UL 60947-4-1; CSA - C22.2 No. 60947-4-1-14; CE Marking
Storage Temperature Range
-40 - 80°C
Type
Contactors
Unspsc V18
39121529
Weight
0.037kg
Width
45mm
kW Rating
5.5kW
