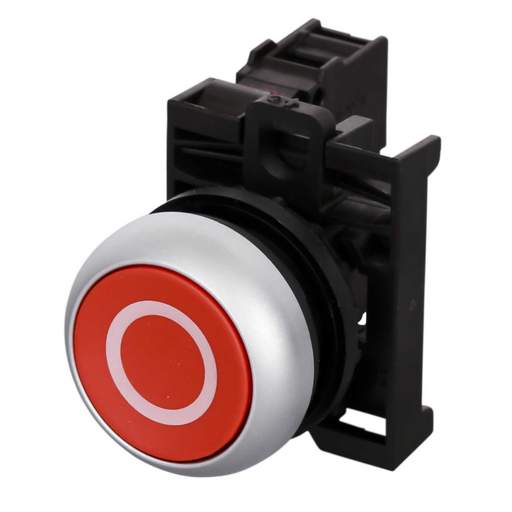

Moeller M22-D-R-X0/K01 Flush Momentary 1 NC Stop Pushbutton Red
Part Code: 216510
Stock Code: 1591-5961
Moeller M22-D-R-X0/K01 Flush Momentary 1 NC Stop Pushbutton Red
Part Code: 216510
Stock Code: 1591-5961
Features
- RMQ Titan 22mm series complete pushbutton unit is designed to simplify the process of buying individual components.
- These units comprise of the pushbutton actuator, fixing collar and contact block
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Red
- Contact Configuration
- 1 NC
- Cut Out
- 22.5mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Legend
- O
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- RMQ-Titan Pushbuttons
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.02000kg
