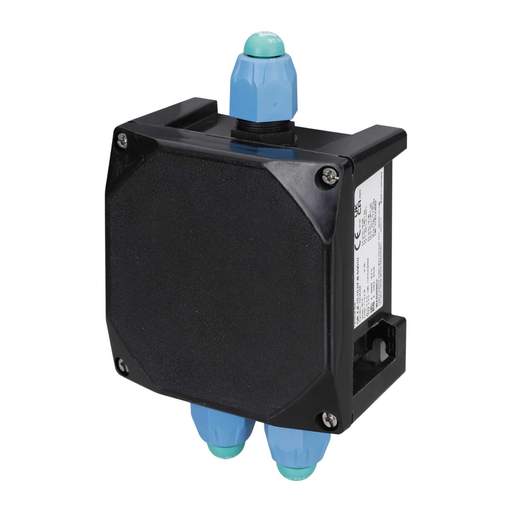

Pepperl & Fuchs Zone 1 Ex i Junction Box with 6 x MUT2.5 Terminals GRP
Part Code: 70124204
Stock Code: 2779-8451
Pepperl & Fuchs Zone 1 Ex i Junction Box with 6 x MUT2.5 Terminals GRP
Part Code: 70124204
Stock Code: 2779-8451
Features
- Carbon loaded, antistatic glass-fibre reinforced polyester
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Terminals 6 x MUT2.5 blue and 2 x MUT2.5 PE
- Modern design with high impact resistance
- Easy installation due to easily accessible mounting points
- Easy cover opening without damage due to multiple pry points
- Top face cable gland polyamide, 1 x M20; bottom face cable gland polyamide, 2 x M20
- Blue marking for use with Ex i circuits
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 GD, Ex ia IIC T* Gb, Ex tb IIIC T** °C Db, T6/T80 °C @ Ta 40 °C, T4/T130 °C @ Ta 60 °C
- Cable Entry
- 3 x M20
- Certification Code
- CML 21 UKEX 3896X
- Colour
- Black
- Depth
- 65mm
- Dimensions
- (H)99 mm x (W)99 mm x (D)65 mm
- Guarantee
- 1 Year
- Height
- 99mm
- IP Rating
- IP66
- Material
- GRP
- Number of Terminals
- 6
- Packaging Types
- Each
- Terminal Capacity
- 2.5mm²
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Weight
- 0.35000kg
- Width
- 99mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
