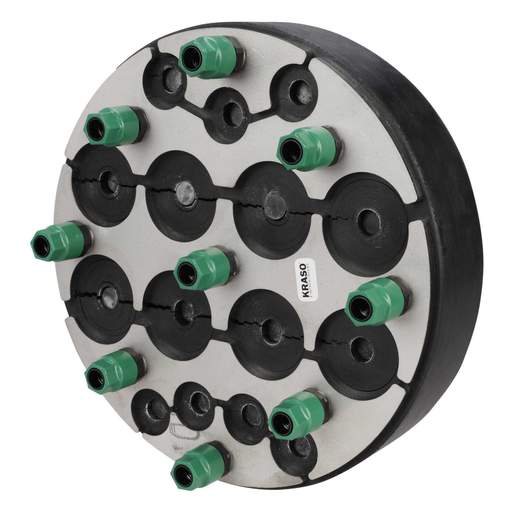

AC Cable Solutions Kraso 200mm Universal Split Mechanical Duct Sealing Insert Design 2
Part Code: KDIMUNIG2002
Stock Code: 2873-4127
AC Cable Solutions Kraso 200mm Universal Split Mechanical Duct Sealing Insert Design 2
Part Code: KDIMUNIG2002
Stock Code: 2873-4127
Features
- Optimal solution for sealing cable entries through foundations and cable ducts
- Withstands water and gas pressures up to 2.5 bar [equivalent to 25 metres of water]
- Crafted from high-quality, non-corrosive stainless steel V2A
- Exceptional durability and resistance to toxic gases [Radon, Hydrogen Sulphide, Methane and Chlorine gas] plus hazardous substances, including hydrocarbons
- High-temperature resistance
- The system consists of two components that are simple to set up. The unique, patented Torque Control Nut ensures precise installation by preventing under-tightening or over-tightening [no torque wrench required]
- Design 2 version-
- 200mm [suitable for Duct size 198mm to 203mm]
- 7 x cable/pipe entries each with a diameter range of 6mm to 18mm [or blank as required]
- 8 x cable/pipe entries each with a diameter range of 6mm to 33mm [or blank as required] "Blank" refers to a spare hole reserved for future use. Not all holes or cable entries need to be used immediately; they can remain blank and be utilized when needed
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 7 x cable/pipe entries with a range of 6mm to 18mm, 8 x 6mm to 33mm [or blank]
- Compliance
- MPA-tested: 2.5 bar IAF tested–FHRK leaflet MB10 DafStB waterproof concrete guide: Stress class 1+2
- Material
- Stainless Steel, Rubber
- Packaging Types
- Each
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 2.3kg
