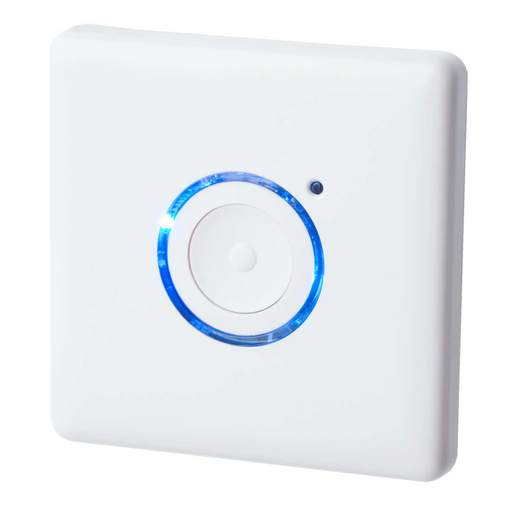

Elkay Push Activated Electronic Slave Switch
Part Code: 350A-3
Stock Code: 0704-0071
Elkay Push Activated Electronic Slave Switch
Part Code: 350A-3
Stock Code: 0704-0071
Features
- Saves cost and energy
- Easy to fit
- Remote operation for master timer
- Cancellation and retrigger function
- Blue locator ring
- Red signal LED
- Suitable for use with a 25mm BS back box
- Please note: LEVPFCC capacitor will often be required when switching certain types of loads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Elkay
- Cancellation Function
- Yes
- Colour
- White
- Compliance
- CE
- Current Rating
- 16A
- Depth
- 8mm
- Dimensions
- (H)85 mm x (W)85 mm x (D)8 mm
- Guarantee
- 6 Years
- Height
- 85mm
- Material
- ABS
- Mounting
- Wall
- Neon
- Yes
- Number of Wire Connections
- 2
- Packaging Types
- Pack
- Product Range
- Energy Sense
- Re Trigger Function
- Yes
- Standards
- BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 + A1:1999
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 2 mins - 2
- Type
- Pushbutton
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V
- Weight
- 0.14500kg
- Width
- 85mm
