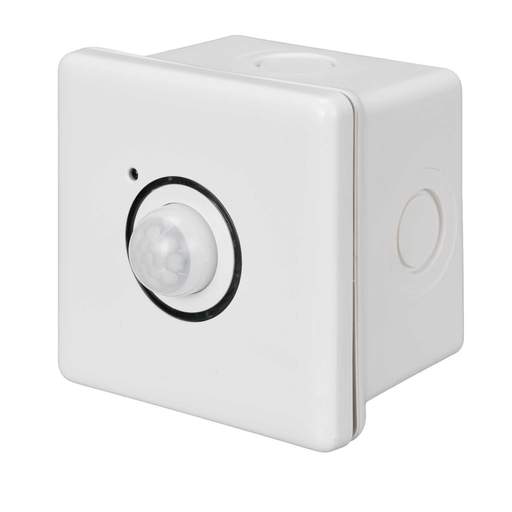

Elkay Outdoor PIR 3 Wire White
Part Code: 570A-1
Stock Code: 0704-0161
Elkay Outdoor PIR 3 Wire White
Part Code: 570A-1
Stock Code: 0704-0161
Features
- Saves cost and energy
- For loads up to 16A
- Adjustable from 2 minutes to 2 hours
- Blue locator ring
- Red signal LED
- Override switch*
- Neutral required
- IP66 waterproof rated
- Supplied with surface mount box with M20 knockout cable entries
- Please note: LEVPFCC capacitor will often be required when switching certain types of loads
- *Override switch is located within the PIR module and once pressed disables the PIR function so the lights are permanently OFF, repressing the PIR module will restore the PIR to normal operation, this unit does not have a permanent ON override
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Elkay
- Cancellation Function
- Yes
- Colour
- White
- Compliance
- CE
- Current Rating
- 16A
- Depth
- 65mm
- Detection Angle
- 100°
- Detection Range
- 7m
- Dimensions
- (H)85 mm x (W)85 mm x (D)65 mm
- Guarantee
- 6 Years
- Height
- 85mm
- IP Rating
- IP66
- Lux Adjustment
- Yes
- Material
- ABS
- Mounting
- Wall / Surface
- Neon
- Yes
- Number of Wire Connections
- 3
- Override Switch
- Yes
- Packaging Types
- Pack
- Re Trigger Function
- Yes
- Sensor
- PIR
- Standards
- BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 + A1:1999, BS EN 60529:1992
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Adjustment
- 2 mins - 120 mins
- Type
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.25700kg
- Width
- 85mm
