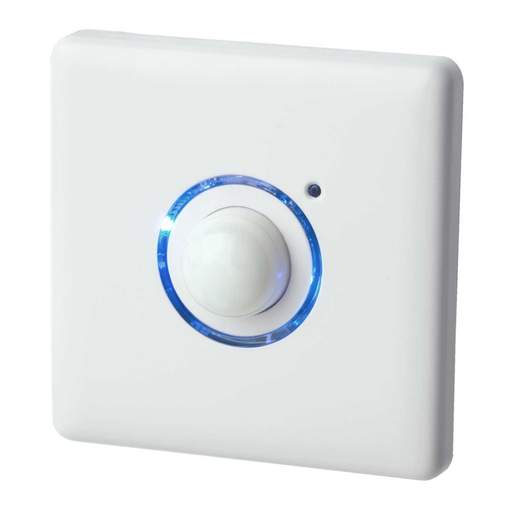

Elkay PIR Slave Unit White
Part Code: 376A-3
Stock Code: 0704-0107
Elkay PIR Slave Unit White
Part Code: 376A-3
Stock Code: 0704-0107
Features
- Saves cost and energy
- Easy to fit
- Remote operation for master timer
- Cancellation and retrigger function
- Blue locator ring
- Red signal LED
- Override switch*
- Suitable for use with a 25mm BS back box
- Please note: LEVPFCC capacitor will often be required when switching certain types of loads
- *Override switch is located within the PIR module and once pressed disables the PIR function so the lights are permanently OFF, repressing the PIR module will restore the PIR to normal operation, this unit does not have a permanent ON override
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Elkay
- Cancellation Function
- Yes
- Colour
- White
- Compliance
- CE
- Current Rating
- 16A
- Depth
- 8mm
- Detection Angle
- 100°
- Detection Range
- 7m
- Dimensions
- (H)85 mm x (W)85 mm x (D)8 mm
- Guarantee
- 3 Years
- Height
- 85mm
- Lux Adjustment
- Yes
- Material
- ABS
- Mounting
- Wall / Recessed / Surface
- Neon
- Yes
- Override Switch
- Yes
- Packaging Types
- Pack
- Product Range
- Energy Sense
- Re Trigger Function
- Yes
- Sensor
- PIR
- Standards
- BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 A1:1999, BS EN 60529:1992
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Type
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.16300kg
- Width
- 85mm
