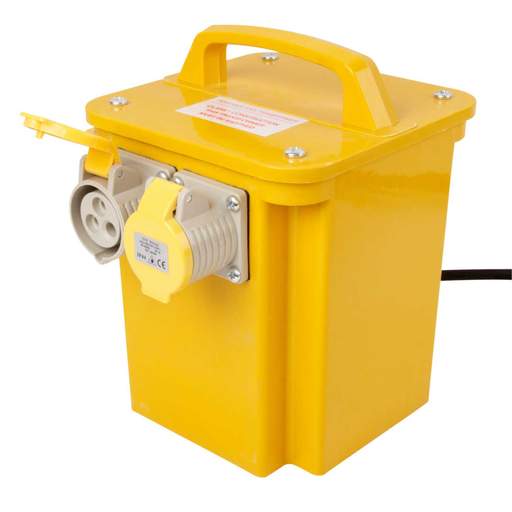

MCG 2.25kVA Single Phase Portable Tool Transformer 110V with 2 x 16A Sockets
Part Code: CM22502/CL
Stock Code: 0530-9797
MCG 2.25kVA Single Phase Portable Tool Transformer 110V with 2 x 16A Sockets
Part Code: CM22502/CL
Stock Code: 0530-9797
Features
- 1350VA continuous rating
- 2250VA tool rating
- Supplied with 2 x 16A 2P E sockets
- Supplied with 2m rubber power cable and 3 pin BS plug
- Robust GRP enclosure with carry handle
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 1
- Colour
- Yellow
- Compliance
- UKCA, CE
- Continuous Rating
- 1350VA
- Depth
- 235mm
- Dimensions
- (H)262 mm x (W)192 mm x (D)235 mm
- Enclosure Type
- GRP
- Guarantee
- 1 Year
- Height
- 262mm
- IP Rating
- IP44
- Input Voltage
- 230V
- Intermittent Duty
- 2250 VA [5 min On / 15 min Off]
- Material
- Glass Reinforced Plastic (GRP)
- Mounting
- Portable
- Number of Sockets
- 2
- Output Voltage
- 110V
- Packaging Types
- Box
- Safety Thermal Overload Cut Out
- Yes
- Socket Current Rating
- 16A
- Standards
- BS EN IEC 61558-1/2-23
- Supplied With
- 1.7m H07RN-F 3G 1.5mm² cable and 3 Pin BS Plug
- Unspsc V18
- 39121001
- Unspsc V24
- 39121001
- Va Rating
- 2250VA
- Weight
- 16.00000kg
- Width
- 192mm
