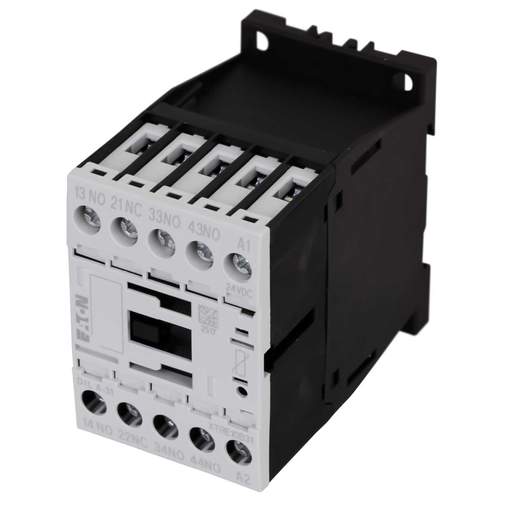

Moeller DILA-31 24V DC Contactor Relay 3 NO + 1 NC Contacts

Part Code: 276379

Stock Code: 1590-9415

Moeller DILA-31 24V DC Contactor Relay 3 NO + 1 NC Contacts

Part Code: 276379

Stock Code: 1590-9415

Delivery

20 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Basic devices with positive operation contacts
  • DIN rail or screw mounted
  • DILA -31 contactor relay cannot be used with 4-pole auxiliary contact module
  • EN 60947

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Coil Voltage
24V DC
Colour
Grey/Black
Contact Configuration
3 NO + 1 NC
Current Rating Ac1
4A
Depth
75mm
Dimensions
(H)68 mm x (W)45 mm x (D)75 mm
Frequency
50/60 Hz
Full Load Current
4A
Guarantee
1 Year
Height
68mm
IP Rating
IP20
Mounting
DIN Rail / Panel
Packaging Types
Each
Product Range
DILA Relays
Standards
IEC EN 60947, UL 508, CSA C22.2 No 14
Unspsc V18
39122331
Voltage Rating
24V DC
Weight
1.5kg
Width
45mm
