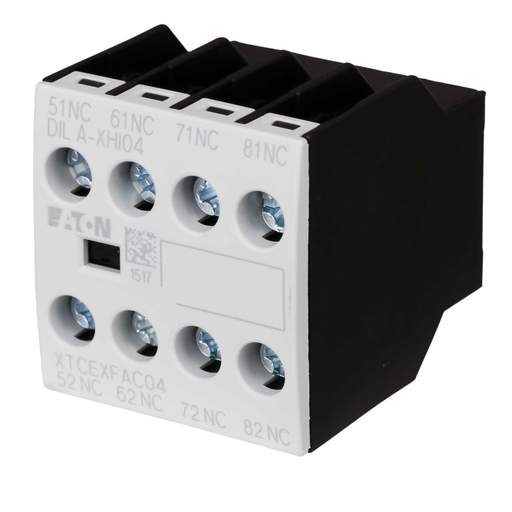

Moeller DILA-XHI04 Auxiliary Contact Block 4 NC Contacts

Part Code: 276424

Stock Code: 1590-9442

Moeller DILA-XHI04 Auxiliary Contact Block 4 NC Contacts

Part Code: 276424

Stock Code: 1590-9442

Delivery

18 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Interlocked opposing contacts for standard applications
  • Operating temperature -25 - 60°C
  • Screw terminals
  • EN 60947-4-1
  • Suitable for DILM9 - DILM32 Contactors

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Black/Grey
Contact Configuration
4 NC
Current Rating
16A
Dimensions
(H)68 mm x (W)45 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
68mm
Mounting
Front
Number of Poles
4 Pole
Operating Temperature Range
-25 - 60°C
Packaging Types
Each
Standards
IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE Marking
Suitable For
DILM(C)9-10, DILM(C)12-10, DILM(C)15-10, DILM(C)17-10, DILM(C)25-10, DILM(C)32-10
Unspsc V18
39121529
Weight
0.0181kg
Width
45mm
