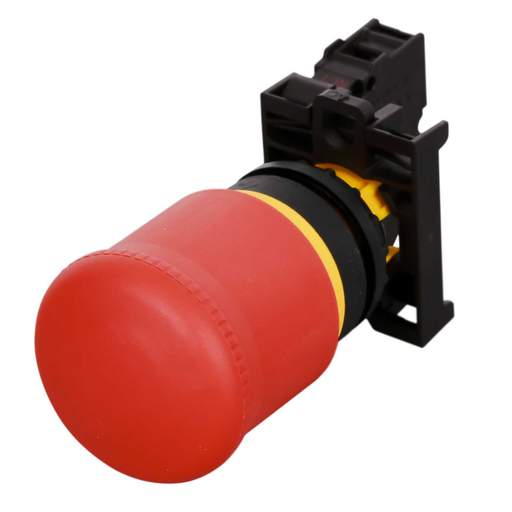

Moeller M22-PV/K01 Emergency Stop Pull Release 1 NC Pushbutton Red
Part Code: 216515
Stock Code: 1591-6249
Moeller M22-PV/K01 Emergency Stop Pull Release 1 NC Pushbutton Red
Part Code: 216515
Stock Code: 1591-6249
Features
- This emergency stop pushbutton complete unit from RMQ Titan 22mm series is designed to simplify the process of buying individual components
- Comprises of the emergency stop pushbutton actuator, fixing collar and contact block
- Mechanical lifespan greater than 100,000 operations
- Tamperproof according to ISO 13850/EN 418
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Red
- Contact Configuration
- 1 NC
- Cut Out
- 22mm
- Diameter
- 38mm
- Dimensions
- (Dia)38 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 50g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Pull Release
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.02000kg
