Moeller M22-LED230-G 230V LED Indicator Lamp Green

Part Code: 216565

Stock Code: 1591-6156

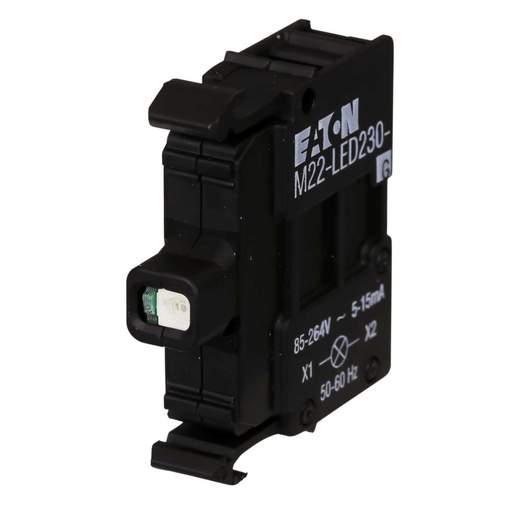

Moeller M22-LED230-G 230V LED Indicator Lamp Green

Part Code: 216565

Stock Code: 1591-6156

Delivery

13 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Rear or front fixing (rear can be mounted separate from the actuator and fixing adaptor is not therefore required)
  • LED elements
  • Single unit
  • Screw terminals

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Green
Frequency
50/60 Hz
Guarantee
1 Year
IP Rating
IP20
Lens Colour
Green
Maximum Operating Temperature
70°C
Mechanical Shock Resistance
30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
Minimum Operating Temperature
-25°C
Packaging Types
Each
Standards
IEC/EN 04937-5] UL 541] CSA-C22.2 No. 83-45] CSA-C22.2 No. 93-98] CE Marking
Storage Temperature Range
-40 - 80°C
Unspsc V18
39121534
Voltage Range
85 - 264V AC
Voltage Rating
230V
Weight
0.095kg
