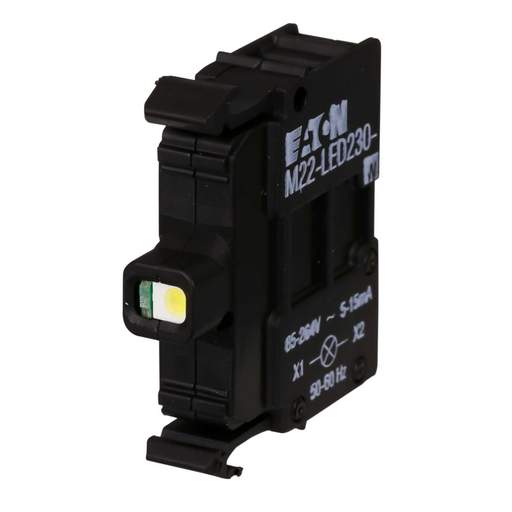

Moeller M22-LED230-W 230V LED Indicator Lamp White
Part Code: 216563
Stock Code: 1591-6162
Moeller M22-LED230-W 230V LED Indicator Lamp White
Part Code: 216563
Stock Code: 1591-6162
Features
- Rear or front fixing (rear can be mounted separate from the actuator and fixing adaptor is not therefore required)
- LED elements
- Single unit
- Screw terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- White
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- IP Rating
- IP20
- Lens Colour
- White
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Packaging Types
- Each
- Standards
- IEC/EN 04937-5] UL 541] CSA-C22.2 No. 83-45] CSA-C22.2 No. 93-98] CE Marking
- Storage Temperature Range
- -40 - 80°C
- Unspsc V18
- 39121534
- Unspsc V24
- 39121534
- Voltage Range
- 85 - 264V AC
- Voltage Rating
- 230V
- Weight
- 0.09500kg
