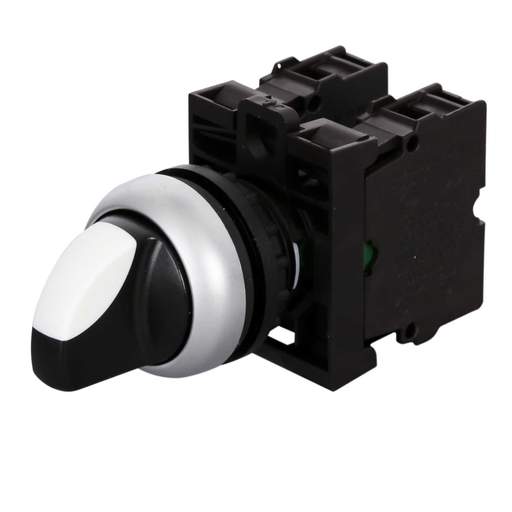

Moeller M22-WRK3/K20 3 Position Selector Switch 2 NO Contacts
Part Code: 216520
Stock Code: 1591-7158
Moeller M22-WRK3/K20 3 Position Selector Switch 2 NO Contacts
Part Code: 216520
Stock Code: 1591-7158
Features
- Complete selector switch unitfrom the RMQ Titan 22mm series is designed to simplify the process of buying individual components
- Unit comprises of the selector switch actuator, fixing collar and contact block
- Mechanical lifespan greater than 1,000,000 operations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Black/Silver
- Contact Configuration
- 2 NO
- Cut Out
- 22mm
- Diameter
- 29.7mm
- Dimensions
- (Dia)29.7 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Number of Positions
- 3
- Operation Type
- Selector Switch
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Weight
- 0.17000kg
